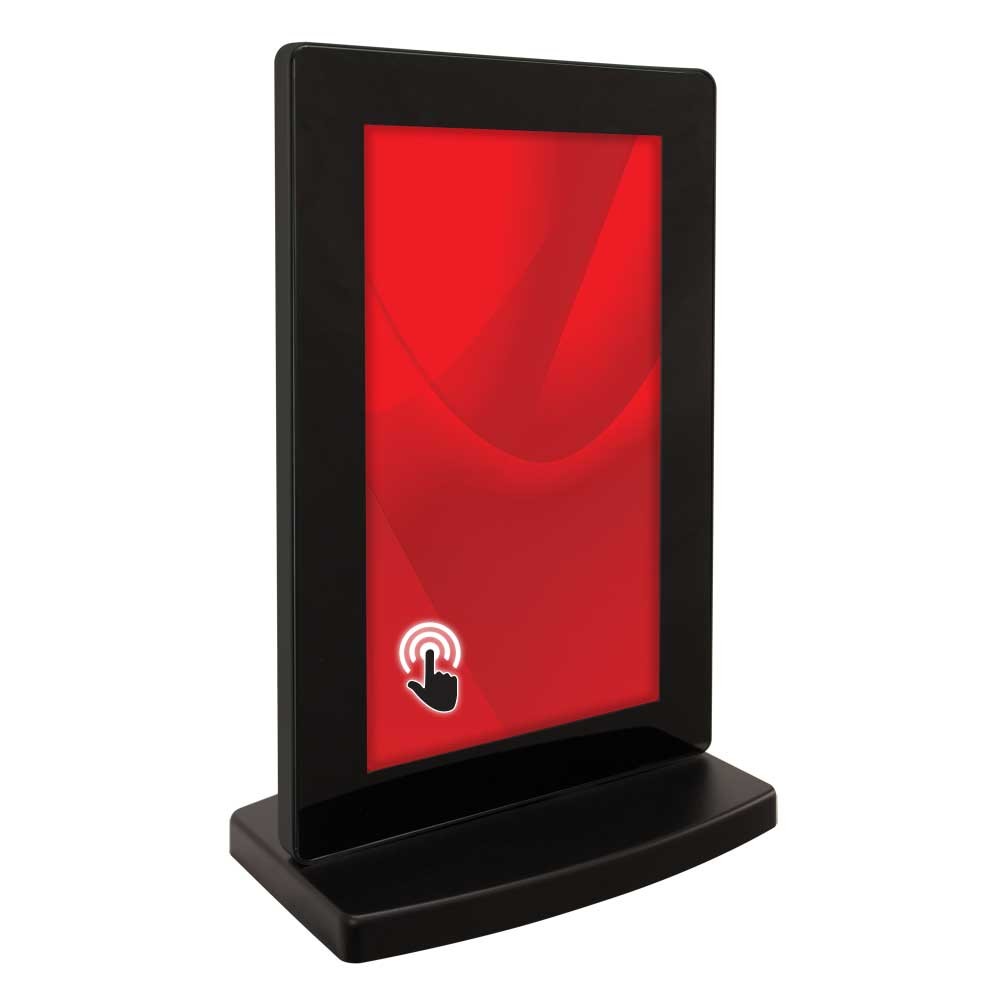

PF22H7KC 22" All-In-One Interactive Touch Tabletop Kiosk with BrightSign Built-In

Product Code: PF22H7KC
PF22H7KC 22" All-In-One Interactive Touch Tabletop Kiosk with BrightSign Built-In


Reliable AII-In-One Interactive Touch Tabletop

Kiosk Solution Engaging audiences has never been easier. These highly reliable displays offer a cost-effective solution ideal for retail, restaurants, public spaces, and more. Our robust full HD screens are powered by BrightSign the industry leader in digital signage media players and software. The integrated BrightSign HD1 022 delivers flawless Full HD 1080p60 single video decoding, HTML support, networked content playback as well as an abundant set of interactive controls using GPIO, USB, serial and UDP connections. HD1022 is extremely versatile for a wide range of applications from stand-alone looping displays and menu boards to highly interactive kiosks and synchronized video walls. Remote snapshot can be used to view an image of what's playing on your signage via the BrightSign App and BrightSign Network.

Capacitive Touch

Engage your audience with 10 simultaneous points of interaction. Easily add touch interactivity using simple drag and drop tools in BrightAuthor.

Industrial Ultra Slim Design

A sleek stylish design that offers the ruggedness needed in today's market place and the simple installation & maintenance design wanted by today's technicians.

Interactive Device Controls

Trigger playback from virtually any type of interactive device you can dream up! barcode scans, motion sensors, RFID, GPIO and USB button controls, IR remote controls, serial devices, keyboards, mice and more. Easily create Interactive Playlists using the Free BrightAuthor PC software.
Tech Specs

Additional Information

Warranty Yes
Warranty 1 year
Accessories Remote Control, AC Power Cord, Tabletop Stand
Aspect Ratio 16:9
Audio 3.5mm Stereo Mini Jack
Audio Format MP3, WMA, M4A, AAC
Audio Input 3.5mm Stereo Mini Jack
Av Input Ports RS232, HDMI, Audio (3.5mm), GPIO, USB
Backlight LED
Brightness 250 cd/m2
Content Import Method SD Card, LAN, WAN
Contrast Ratio 1,100:1
Display Screen Size 22"
Gross Weight 24.25 lbs.
Lan RJ45 (10/100)
Media Player BrightSign HD1022
Memory Card Type SD Card
Operating System BRIGHTSIGN
Ports VGA/HDMI/Audio (3.5mm), RJ45 (10/100), USB 2.0
Power Consumption 32W
Product Size 23.05"(H) x 14.89"(W) x 1.98"(D)
Resolution 1920x1080
Sd Slot SDHC and SDXC
Speaker 2W, 4Ω
Supported Audio MP3, WMA, M4A, AAC
Supported Image BMP, JPG, JPEG, PNG
Supported Software BRIGHT AUTHOR
Supported Video AVI, MP4, TS, TRP, MKV, MOV, MPG, DAT, VOB
System Support BrightSign
Panel Life 50,000 hours
Program Input Ports USB 2.0 Auto Import
Touch Type Capacitive
Touch Points 10 Points
Usb 2.0 high speed
Viewing Angle 178°
Working Humidity 10% ~ 80% RH Non-condensing
Operating Temperature 32° - 122°
Vesa 100mm x 100mm
Orientation Landscape/Portrait
